Description

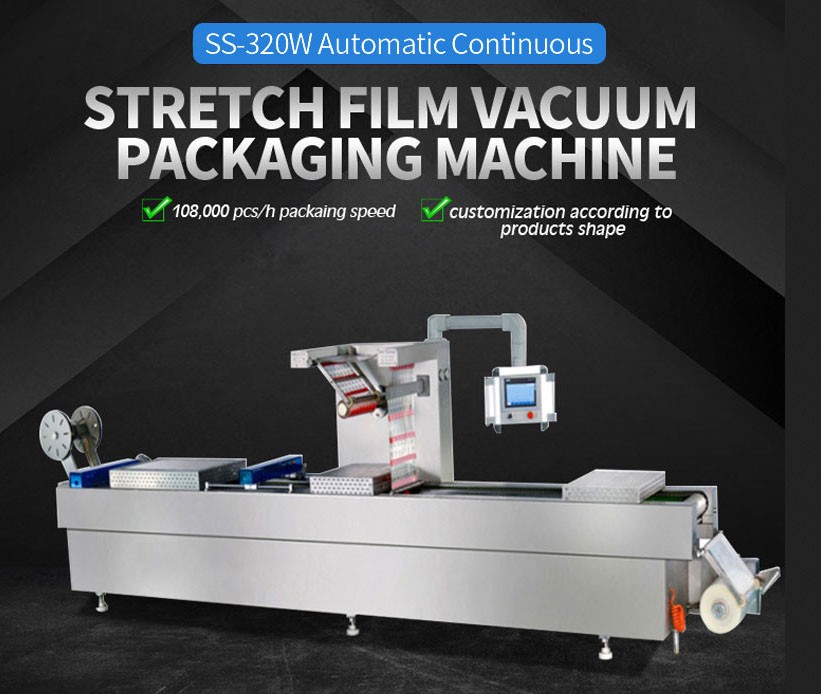

Automatic stretch film vacuum packaging machine

Suitable for vacuum, aeration, skin packaging, etc. of various food, meat products, donkey-hide jujube series products,

seafood, fruits and vegetables, pickles, frozen meat, medical products, hardware components, medical machinery, etc.

It is controlled by Japan’s Mitsubishi programmable controller, 2310 color touch screen,

Mitsubishi servo drive system is used,

and all electrical appliances such as Japan, Europe, and Taiwan are used.

Equipped with complete safety protection measures

Outstanding Features

Automatic Continuous Stretch Film Vacuum Packaging Machine

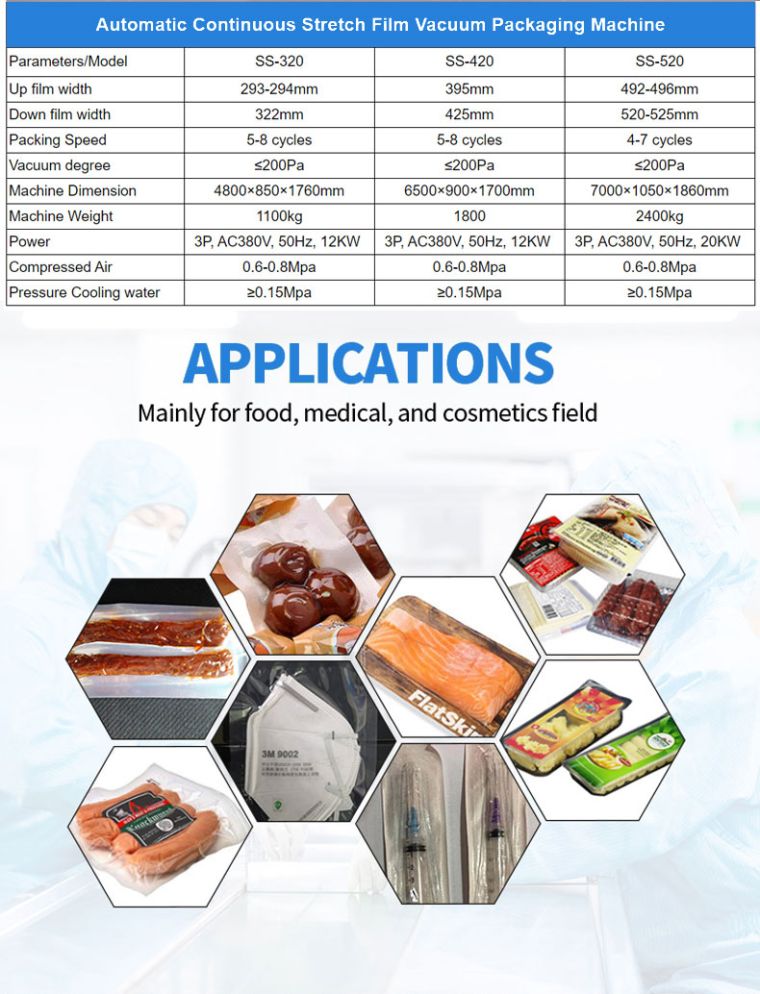

Parameters/Model	SS-320	SS-420	SS-520
Up film width	293-294mm	395mm	492-496mm
Down film width	322mm	425mm	520-525mm
Packing Speed	5-8 cycles	5-8 cycles	4-7 cycles
Vacuum degree	�?00Pa	�?00Pa	�?00Pa
Machine Dimension	4800×850×1760mm	6500×900×1700mm	7000×1050×1860mm
Machine Weight	1100kg	1800	2400kg
Power	3P, AC380V, 50Hz, 12KW	3P, AC380V, 50Hz, 12KW	3P, AC380V, 50Hz, 20KW
Compressed Air	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Pressure Cooling water	�?.15Mpa	�?.15Mpa	�?.15Mpa

Specification
