CB-817 Fully Automatic Flat Surface Labeling Machine

首页>> 产品中心

包装设备 >> 直接包装机械

索取资料及报件�/span>

产品介绍

Description

CB-817Fully Automatic Flat SurfaceLabeling Machine

Technology Data:

Model	NY-817
Production capacity	0-150 pcs/min
Accuracy of labeling	±1mm
Range of application products	length: 40-400mm width: 40-200mm height: 0.2-300mm

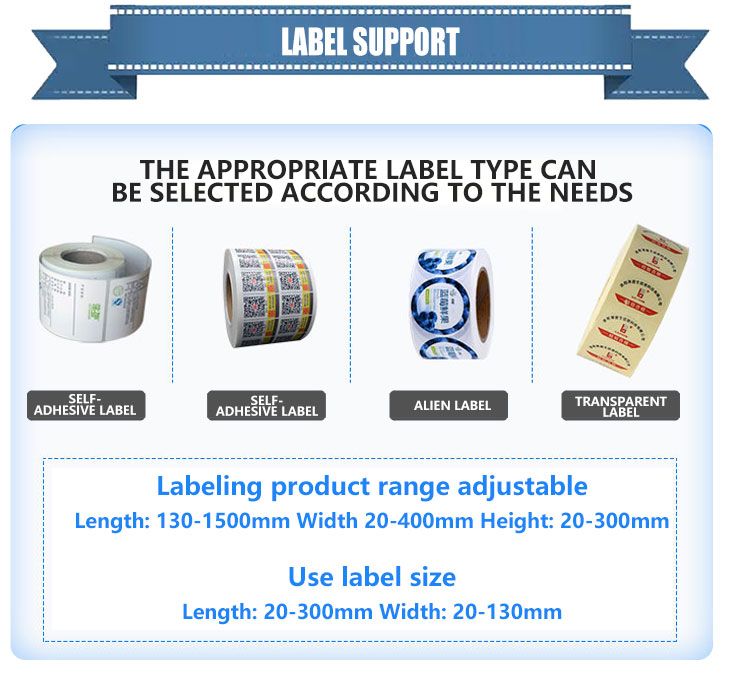

Max. width of label	110mm(Can be custom-made)
Diameter of paper roll	inner diameter Φ76mm external diameter max.Φ330mm
Power supply	AC220V 50/60Hz 0.53KW
Machine size (L x W x H)	1550mmx650mmx1350mm
Weight	180kg

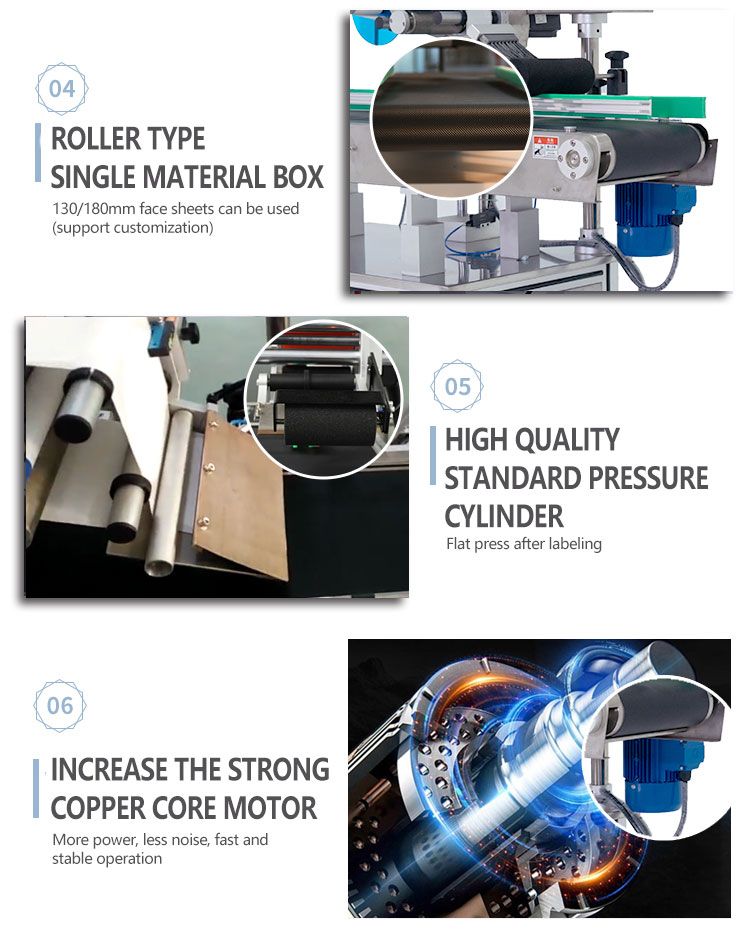

Outstanding Features

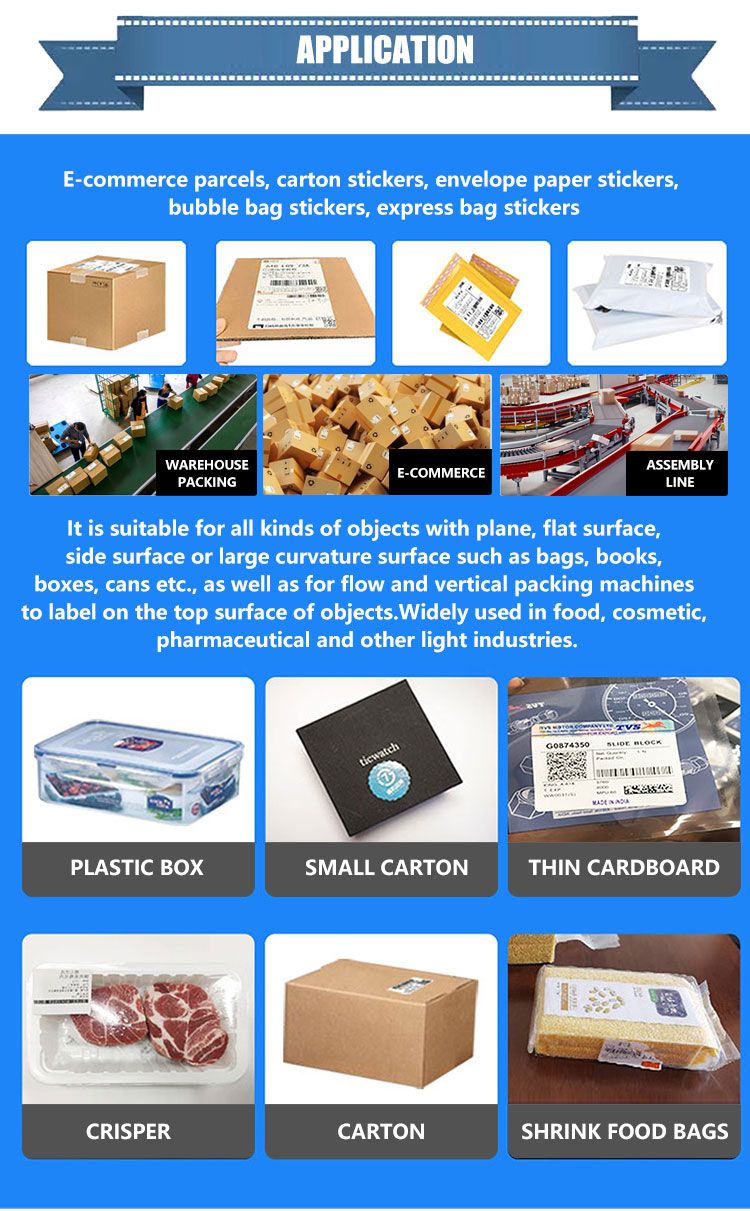

Applications:

It is suitable for all kinds of objects with plane, flat surface, side surface or large curvature surface such as bags, books, boxes, cans etc. Widely used in food, cosmetic, pharmaceutical and other light industries

Description

Outstanding Features

Applications:

Specification
