Carbon foils are stocked in five basic forms: Pyrolitic graphite - a strongly anisotropic, high density, high purity material manufactured by Chemical Vapour Deposition (CVD). It is non porous and self lubricating, lightweight and shows excellent thermal shock resistance. It can be easily machined with normal metalworking tools.
Flexible graphite - an exfoliated material which is mechanically bonded to form thin, flexible sheet. It is commonly used as a gasket material for corrosive or high temperature service (up to 600C in air, 2500C in an inert atmosphere). Rigid graphite sheet? - a rigid form of graphite. The exceptional corrosion resistance and high temperature properties of graphite make this material suitable for applications as diverse as heat exchanger blocks for chemical process plant and arc furnace electrodes used in steel manufacture. Highly Oriented Pyrolitic Graphite (HOPG) - a highly oriented form of high purity pyrolitic graphite which diffracts x-rays and neutrons with greater efficiency than any other material. Vitreous or Glassy Carbon - is available under a separate heading. This material has high flexural strength with zero open porosity and, hence, a low permeability to gases. Glassy carbon has excellent resistance to a wide range of aggressive chemical environments and can, therefore, be used as an alternative material to precious metals for laboratory equipment and, for example, for electrodes in polarography.
订货号 |
包装规格 |
151-632-97 |
12.5mm x 12.5mm |
606-856-56 |
25mm x 25mm |
857-064-00 |
50mm x 50mm |
133-003-22 |
100mm x 100mm |
958-683-65 |
150mm x 150mm |

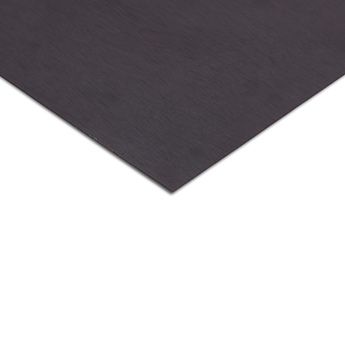

半岛bd体育手机客户端 参数
Grade[等级] |
Rigid Graphite |
Grain Size[粒度] |
Fine |
Purity[纯度] |
99.95% |
Thickness[厚度] |
0.125mm |
Typical Analysis(典型分析) |
Al |
5 PPM |
Ba |
1 PPM |
Ca |
50 PPM |
Co |
<5 PPM |
Cr |
<5 PPM |
Cu |
<5 PPM |
Fe |
5 PPM |
Ni |
50 PPM |
Si |
<5 PPM |
Ti |
30 PPM |
V |
100 PPM |
Zr |
<20 PPM |
Thermal Properties(热性能) |
Coefficient of thermal expansion ( x10?? K?? ) |
0.600 - 4.300 @0-100℃ |
Melting point ( C ) |
3650.00 |
Specific heat ( J K?? kg?? ) |
712.0 @25℃ |
Thermal conductivity ( W m?? K?? ) |
80.00 - 240.00 @0-100℃ |
Mechanical Properties(机械性能) |
Bulk modulus ( GPa ) ( Diamond ) |
542.0 |
Bulk modulus ( GPa ) ( Graphite ) |
33.0 |
Hardness - Mohs ( Diamond ) |
10.00 |
Hardness - Mohs ( Graphite ) |
0.50 - 1.00 |
Material condition |
Diamond |
Material condition |
Graphite |
Tensile modulus ( GPa ) ( Graphite ) |
4.80 |
Atomic Properties(原子属性) |
Atomic number |
6 |
Atomic weight ( amu ) |
12.01100 |
Crystal structure |
Hexagonal/Diamond |
Electronic structure |
He2s?2p? |
Ionisation potential ( No./eV ) |
6 / 490 |
Ionisation potential ( No./eV ) |
4 / 64.5 |
Ionisation potential ( No./eV ) |
1 / 11.26 |
Ionisation potential ( No./eV ) |
3 / 47.9 |
Ionisation potential ( No./eV ) |
2 / 24.38 |
Ionisation potential ( No./eV ) |
5 / 392 |
Natural isotope distribution ( Mass No./% ) |
12 / 98.89 |
Natural isotope distribution ( Mass No./% ) |
13 / 1.11 |
Photo-electric work function ( eV ) |
4.80 |
Thermal neutron absorption cross-section ( Barns ) |
0.0034 |
Valences shown |
2 , 3, 4 |
Physical Properties(物理性质) |
Boiling point ( C ) |
5000 |
Density ( g cm?? ) |
2.250 @20℃ |
Electrical Properties(电气特性) |
Electrical resistivity ( μOhmcm ) |
1375@0℃ |
Thermal emf against Pt (cold 0C - hot 100C) ( mV ) |
0.70 |
其他参数
公差
长度 |
<100mm |
±1mm |
≥100mm |
+2% / -1% |
直径 |
<100mm |
±1mm |
≥100mm |
+2% / -1% |
厚度 |
<0.01mm |
±25% |
≤0.05mm |
±15% |
>0.05mm |
±10% |
长度 1 |
<100mm |
±1mm |
≥100mm |
+2% / -1% |
长度 2 |
<100mm |
±1mm |
≥100mm |
+2% / -1% |
