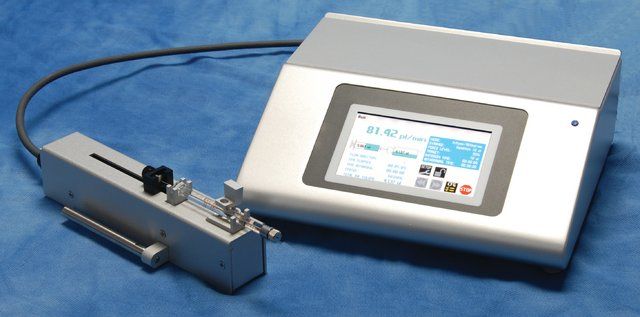

KDS Legato^TM 130, single syringe nanoliter infusion/withdraw pump

NB.01

Single syringe infuse/ withdraw with program option for 2 programs. 50 steps each. Holds one syringes from 0.5 μL to 1000 μL. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

• Holds one syringe from 0.5 μL to 1000 μL
• High resolution color touch screen
• Unparalled ease of use
• Touch pad "lock" feature
• LED light on front panel
• Full metal chassis
• Built in syringe table
• Up to 11 lbs linear force
• Advanced microstepping techniques
• Built in RS485 interface
• USB port
• I/O & TTL interface
• Continuous mode of operation
• Spill dam

Legato is a trademark of KD Scientific

CE compliant
accuracy± 0.5%
2 channels

KD Scientific 788130

-10-70 ℃ temp. limit (storage)
4-40 ℃ temp. limit (operating)

22.6 cm × 17.78 cm × 9.32 cm

0.0005-1 mL

1.96 kg (4.32 lb)
