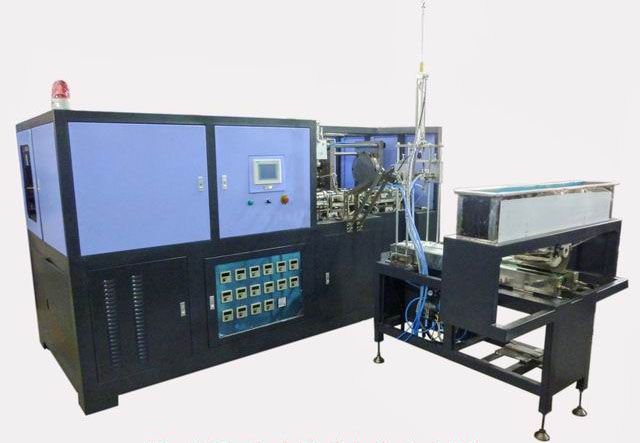

* 可吹制前置手柄瓶，也可吹制后置手柄瓶。可适合予吹制规则手柄或异形不对称手柄等多种款式、br/>* 配置一款新全自动上胚结构，取消了混料式料斗，大大减少了胚管的相互摩擦。设计新颖，结构紧凑，缩小了占地面积,调整简单、/span>
| 产品及产胼/span> |
|
| 制品容积（ML）Max.Volume of product(ML) |
500-2500 |
| 制品最大高度（MM）Max.Height of Product(MM) |
260 |
| 适合胚管壁厚（MM）Wall Thickness of Preform (MM) |
1? |
| 适合胚管最大高度（MM Max. Height of Preform (MM) |
180 |
| 制品最大直径（MM）Max.Diameter of Product(MM) |
Φ170 |
| 生产能力（瓶/小时）Production Capacity (PCS/HR) |
300?00 |
| 胚管加热装置 HEATING DEVICE |
|
| 胚管座数（个）Mo.of Preform Holder(PCS) |
58 |
| 适合胚管口内径（MM）Max.Neck Diameter of Preform |
φ30～?5 |
| 远红外线光管排列(支×区) Arrangement of Infra-Red Tubes(PCSxZONES) |
8×6 |
| 实际加热功率(KW) Average Power Consumption(KW) |
12-13 |
| 拉吹装置 STRETCH-BLOW DEVICE |
|
| 模具腔数No.of Mould Cavity |
1 |
| 模具标准厚度(MM) Standard Mould Thickness(MM) |
260±0.5 |
| 模具标准宽度(MM) Standard Mould Width(MM) |
218 |
| 开模最大行程MM) Max.Span Between Opening Moulds(MM) |
270 |
| 模腔标准间距Standard Span Between Mould Cavities(MM) |
--- |
| 额定动作气压(Mpa) Working Air Pressure(Mpa) |
0.8? |
| 最大吹气气?Mpa) Blowing Air Pressure(Mpa) |
3 |
| 要求空压机排气量(M3/MIN)（低?高压）Volume of Low/High Pressure Air Compressor(M3/MIN) |
1.2/2 |
| 机台外型尺长×宽×高（MM）Dimensions(Length×Width×Height)(MM) |
3085×1400×165 |
| 主机重量（KG）Weight |
3500 |
