Full Servo Box Motion Flow Packing Machines CB-680XWS

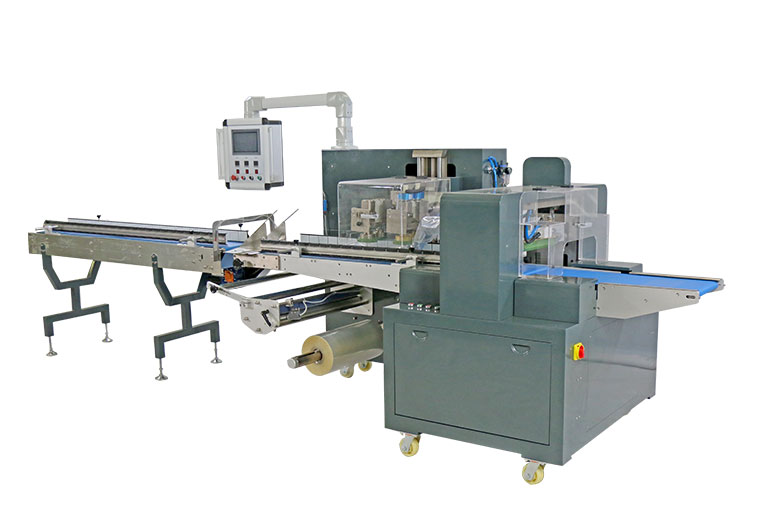

Full Servo Box Motion Flow Packing Machines CB-680XWS图片
产品介绍
  • Description

    • 5 independent motors (Conveyor, cutter, plastic film moving, movement of center sealing part, movement of end sealing part)

    • Motion controller for quick response to various commands

    • Accurate positioning

    • Independent temperature control for center sealing and end sealing

    • Food grade SS304 contact parts


  • Outstanding Features

    • All control in one movable control panel, user-friendly and easy operation

    • Box-motion cutter for high products packing and ensure the compact package

    • Empty bag prevention, no product no bag

    • Product cutting prevention,machine will stop once cutter cuts the product

    • Memory function,can store 99 groups of package parameters (product position, packing speed, bag length)

    • Independent control for movement of center sealing part and end sealing part, to meet different product height

    • Have alternative choose for flexible length system no pusher and fix length with guide pusher

    • Pure PE film can be use on the machine

Specification

Model CB-680XWS
Film width ?80mm
Film thickness 30-80um
Dimension of film bobbin Outer diameter?00mm Inner diameter?5mm
Single knife bag size L(60-6000)xW(25-320)xH(10-120)mm
Single knife packing speed 10-40bags/min
Power 220V,50HZ,5.2KW
Outer dimension L5000xW1200xH1650mm
Machine weight 1080KG
Motor configuration Full servo
Film bobbin position Down
Blade cut type Box motion / Reciprocating
