ATP3330和ATP5330是奥谱天成新开发的一款超薄、制冷型、超高分辨率微型光谱仪，ATP3330和ATP5330是基于奥谱天成自主研发的M型光路结构，具有非凡的超高分辨率；同时，它采用制冷的2048?096像素线阵探测器，达到?*的超高分辨率，最高分辨率可达0.05nm，适用于各种高分辨率应用场合，同时具备高可靠性、超高速、低成本、高性价比等特性，可适应在线测试等各种环境用途的微型光谱仪、/p>
ATP3330为非制冷的，ATP5330则采用TEC电制冷，制冷温度-5℃，大大降低了光谱仪的暗电流和噪声，提高了光谱仪的动态范围和信噪比，同时提高了光谱仪的环境适应性。ATP5330P则采用制冷背照式CCD，信噪比更优、/p>
ATP3330和ATP5330可接收SMA905光纤输入光或者自由空间光，通过USB2.0或者UART端口，输出测量所得的光谱数据、/p>
ATP3330只需要一?V直流电源供电或直接从USB接口取电，非常便于集成使用。ATP5330则需要额外的5V电源、/p>
|
探测器制冷？ |
探测器像紟/p> |
ATP3330 |
?/p> |
2048 |
ATP3334 |
?/p> |
4096 |
ATP5330 |
是，-5ℂ/p> |
2048 |
ATP5334 |
是，-5ℂ/p> |
4096 |
ATP5330P |
是，-10℃，背照式CCD |
2048 |
特征

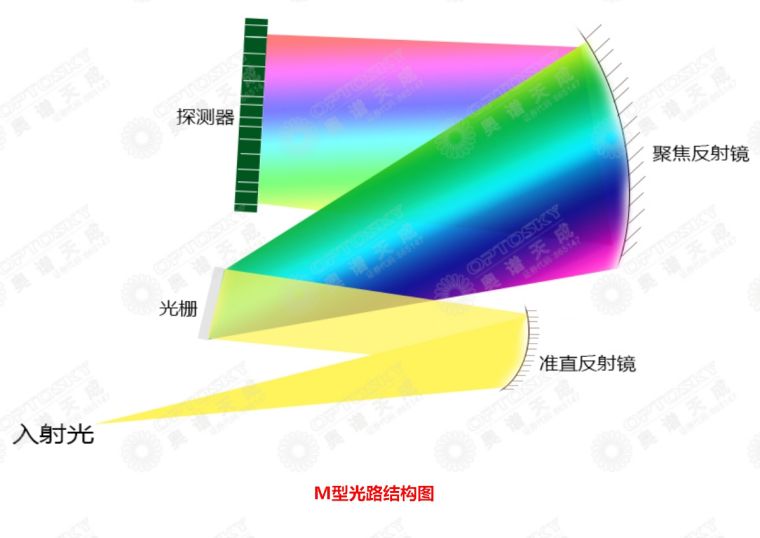

? M型光路，更高分辨率；
? 光谱范围: 200-1100 nm：/p>
? 光谱分辨玆 0.05 3 nm：/p>
? 光路结构: 非交叉C-T：/p>
? 检测器 2048?096像素：/p>
? 探测器制冷温度：-5 ℂ/p>
? 积分时间: 0.1ms 256s：/p>
? 供电电源: 直流5V 供电：/p>
? ADC位深?6位；
? 数据输出接口：USB Type-C：/p>
? 20针扩展接口；
应用领域
? LIBS、等离子体发光检测；
? 拉曼光谱检测；
? 波长监测，激光、LED等发光体
? 水质分析?/p>
? LED分选机、颜色检测；
? 光谱分析、辐射分光分析、分光光度分枏/p>
? 反射、透射光谱检浊/p>
3Electrical Pin-out
Table 1 Electrical Characteristics
Parameter |
Min |
Typ |
Max |
Unit |
Power Supply |
|
|
|
|
Operating voltage range |
4.5 |
5 |
5.5 |
V |
Operating current |
|
170 |
|
mA |
Logic Inputs(3.3V LVTTL, Five-volt tolerant) |
|
|
|
|
High level input voltage |
1.7 |
|
3.6 |
V |
Low level input voltage |
-0.3 |
|
1.0 |
V |
Logic Output(3.3V LVTTL) |
|
|
|
|
High level output voltage |
2.4 |
|
|
V |
Low level output voltage |
|
|
0.4 |
V |
The module is equipped with a 30-pin male angled box header(2x15, 2.00 mm pitch) and Type-C interface.
Table 2Electrical Pin-Out
Pin# |
Description |
I/O |
Function Description |
1 |
VCC |
/ |
Power Supply,5V0.5, |
2 |
GND |
/ |
Ground |
3 |
UART_TX |
Output |
UART Transmit signal |
4 |
UART_RX |
Input |
UART Receive signal |
5 |
Lamp_En |
Output |
LVTTL output the lamp enable signal. |
6 |
Continuous_strobe |
Output |
LVTTL output the continues strobe signal. |
7 |
Ext_trigger_in |
Input |
LVTTL input the trigger signal. |
8 |
Single_strobe |
Output |
LVTTL output the single strobe signal. |
9 |
SPI_SCK |
Output |
The SPI Clock signal for communications to other SPI peripherals |
10 |
SPI_MOSI |
Output |
The SPI Master Out Slave In (MOSI) signal for communications to other SPI peripherals |
11 |
SPI_MISO |
Input |
The SPI Master In Slave Out (MISO) signal for communications to other SPI peripherals |
12 |
SPI_CS |
Output |
The SPI Chip/Device Select signal for communications to other SPI peripherals |
13 |
GPIO0 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
14 |
GPIO1 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
15 |
GPIO2 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
16 |
GPIO3 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
17 |
GPIO4 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
18 |
GPIO5 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
19 |
GPIO6 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
20 |
GPIO7 |
Input/Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
4OrderGuide
Order number Rules:
Model |
Spectral region |
Slit width |
|
ATP5030 |
Shortwavelength |
Longwavelength |
Slit width |
|
For example:
What to buy ATP5030, spectral region: 200-1000nm, slit width is 50 um, then the order no is:
ATP5030-200-1000-050
Order No |
Spectral region |
Slit |
|
ATP5030-200-400-### |
200?00 |
10 m 25 m 50 m 100 m 200 m Other:______m |
|
ATP5030-200-850-### |
200?50 |
|
ATP5030-200-1000-### |
200?000 |
|
ATP5030-340-850-### |
340?50 |
|
ATP5030-600-1100-### |
600?100 |
|
ATP5030-###-###-### |
Other |
|
