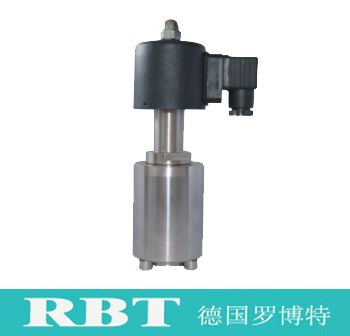

进口低温电磁阀

Imported low temperature solenoid valve

【半岛bd体育手机客户端 特点Product features】

德国罗博特RBT进口低温电磁阀阀芯采用不锈钢活塞式，活塞环用特殊耐低温、耐磨材料制作；活塞与金属阀腔不产生直接摩擦，阀体安装方向无限制；特制线圈，不易烧毁；长时间停止动作重新启动，作同样灵敏。

Germany RobertRBT imported low temperature solenoid valve with stainless steel piston, piston ring with a special low temperature resistant, wear-resistant material production; piston and metal valve chamber does not produce direct friction, valve installation direction without restrictions; special coil, not easy to burn; long time to stop the action to restart, for the same sensitivity.

【半岛bd体育手机客户端 特点Product features】

独特设计、外观精美；活塞结构、性能稳定；低温材料、密封性好专制线圈、不易烧毁。

the unique design, exquisite appearance; the piston structure, stable performance. good sealing material; low temperature; autocratic coil, not easy to burn.

【主要技术参数Main technical parameters】

通径范围：DN1-DN100。

控制方式：常开、常闭。

电源电压：DC12-220V、AC24-380V。

阀体材质：黄铜、不锈钢。

适用介质：低温流体等。

压力范围：0-6.4MPa。

温度范围：(-200+80)。

介质粘度：小于50C St(大于时需定制)。

防护性能：防尘防水防爆。根据工况选择。

接线方式：接线座式、引线式、插头式。

连接方式：法兰、焊接、内螺纹(外螺纹和特殊接口可定做或加转接头)。

注：外形尺寸根据连接方式确定。特殊要求可订做

The size range: DN1-Dn100

Control mode: normally open. normally closed.

The power supply voltage: DC12-220V; AC24-380V.

The valve body material: brass, stainless steel.

Applicable medium: cryogenic fluid

Pressurerange:0-6.4MPa

Temperature range(-200+80)

The viscosity of the medium:less than 50C St(more than required custom).

The protective per,ormance of dustprooF, waterproof, explosion-proof According to the working condition.

The connection: connection seat type; lead: plug type.

The connection: flange, welding.threaded(external threads and a special interface can be customized or adapter)

Note: according to the connecting way of determining dimensions, special

requirements can be customized.

【应用范围Scope of application】

**、航天、船舶重工、核工业石化、电力、化学、轻工、机械、科研冷冻设备空调消防、食品、医疗、管道介质自动化控制等领域。

the mi,itary, aerospace, shipbuilding, nuclear industry, petrochemical, power,chemical, lighlindustry, machinery,scientific research, refrigeration equipment, air-conditioning, Fire protection, food, medical, automation and control in areas such as the medium in the pipeline.

【注解Note】

流体中若含有杂质，电磁阀进端必须安装过滤器，二进一出的工作原理的电磁阀两进口端压力不相等时，需加止回阀。可安装止回阀或订制自带止回功能的阀门。

if the fluid contains impurities,solenoid valve into the end must be installed in the filter,two into a working principle of the solenoid valve two inlet end pressure is not equal,the need to add check valve.Can be installed check valve or custom comes with a return function of the valve.

德国罗博特RBT阀门集团有限公司中国总代理(上海波昂一级代理商)
