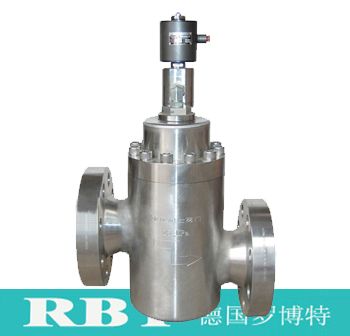

德国罗博特超高压电磁阀
半岛bd体育手机客户端 介绍
进口超高压电磁阀Imported high pressure solenoid valve 【半岛bd体育手机客户端 特点】 德国罗博特RBT进口超高压电磁阀阀芯均为不锈钢活塞式,活塞环不会被介质中的杂质卡死,动密封性能高、寿命长。活塞与金属阀腔不产生直接摩擦,阀体安装方向无限制;专制线圈,不易烧毁;长时间停用,动作同样灵敏;最低启动压力1.0MPa。世界首创、超高压力;活塞结构、胜能稳定;密封性好、开关迅速;专制线圈、不易烧毁;撮高压力可做到300MPa。Germany Robert RBT imported high pressure solenoid valve core are stainless steel piston, piston ring will not be the medium of the impurities stuck in the media, high performance, long life. 【主要技术参数】 通径范围:DN1--DN300。 压力等级:PN80-300Mpa。 控制方式:常开、常闭、自保持式。 电源电压:DC12^220V、AC24^380V。 阀体材质:不锈钢。 适用介质:水、气、油、腐蚀流体等。 温度范围:(-5D+200)。 介质粘度:小于50C St(大于时需定制)。 防护性能:防尘、防水、防爆根据工况选择。 接线方式:接线座式、引线式、插头式。 连接方式:法兰、焊接、内螺纹(外螺纹和特殊接口可定做或加转接头)。 注外形尺寸根据压力等级告知,特殊要求可订做 Maintechnical parameEers: The size range:DN1-DN300 Pressure grade:PN80-300Mpa Control mode:normally open, normally closed, sell-retaining. The power supply voltage:DC12-220V; AC24-380V The valve body material:stainiess steel Applicable medium: water, oil, gas, corrosive fluid. Temperature range:(-50+200). The viscosity of the medium;loss than 50C St (more than required custom) The protective performance of dustproof, waterproof,explosion-proof.According to the working condition The connection, connection seat Eype; lead, plug type The connection. flange, welding. Ehreaded(external threads and a special interface can be customized oradapter). Note:the dimensions according to the pressure level to inform, special requirements can be customized 【应用范围】 **、航天、船舶重工、核工业石化、电力、化学、轻工、机械、科研工业窑炉、干燥设备、给排水、消防食品医疗、清洗设备、啧泉、管道介质自动化控制等领域。 Scope of application: the military, aerospace, shipbuilding, nuclear industry, petrochemical, power,chemical, light industry, machinery, scientific research, industrial furnace, drying equipment, water supply and drainage, fire proteclion. food health care, cleaning equipment, fountain, the medium in the pipeline automatic control and other fields。 【注解Note】 流体中若含有杂质,电磁阀进端必须安装过滤器,二进一出的工作原理的电磁阀两进口端压力不相等时,需加止回阀。可安装止回阀或订制自带止回功能的阀门。 if the fluid contains impurities,solenoid valve into the end must be installed in the filter,two into a working principle of the solenoid valve two inlet end pressure is not equal,the need to add check valve.Can be installed check valve or custom comes with a return function of the valve. 德国罗博特RBT阀门集团有限公司中国总代理(上海波昂一级代理商)
