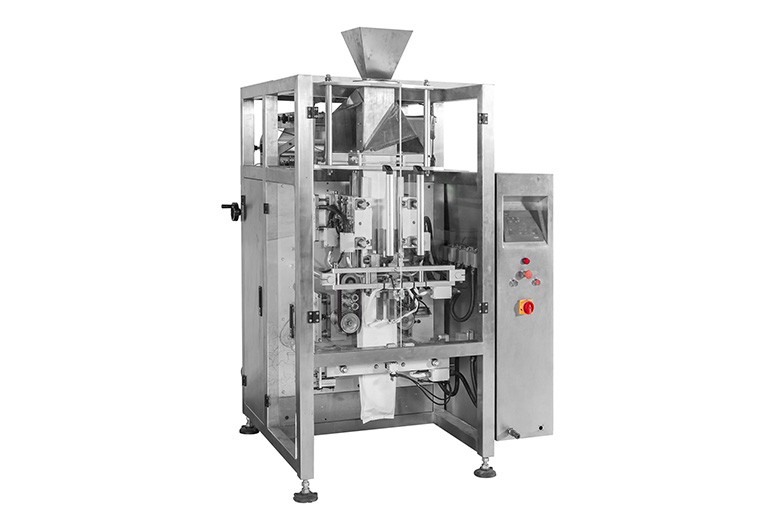

VFFS Packing Machine Quad Seal Bag Series CBQ1-520/680/820
半岛bd体育手机客户端 介绍
Description
Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
PLC control with stable and high accuracy output.
Metering system can be match multihead weigher /auger doser filler /volumetric cup filler / pump filler
Outstanding Features
This machine is a type for box bags, the packaging bag is added with four gussets, making the packaging bag have stronger spatial sense and appearance more beautiful and also let your product have more attraction.
This packaging machine adopts Schneider Servo motor for film pulling, and man-machine interface uses advanced touch screen to make operation simpler and more convenient.
Schneider Servo motor driven horizontal sealing.
Film pulling belt: Two belts
Schneider PLC & Touch screen
Specification
Model |
CBQ1-520 |
CBQ1-680 |
CBQ1-820 |
Measuring range |
6L |
10L |
15L |
Front width |
160mm |
200mm |
240mm |
Side width |
40-80(mm) |
40-105(mm) |
40-128(mm) |
Width of the side seal |
5-10(mm) |
5-10(mm) |
5-10(mm) |
Bag length |
400mm |
400mm |
500mm |
Packaging speed |
10-60bag/min |
Packing material |
OPP/CPP OPP/CE PET/PE |
Max width of film roll |
520mm |
680mm |
820mm |
Voltage |
220V AC/ 50HZ |
Power |
5.5KW |
6KW |
6.5KW |
Machine Weight |
600KG |
700KG |
850KG |
Metering device |
Multihead weigher/Volumetric cup filler/Auger doser |
|
|
