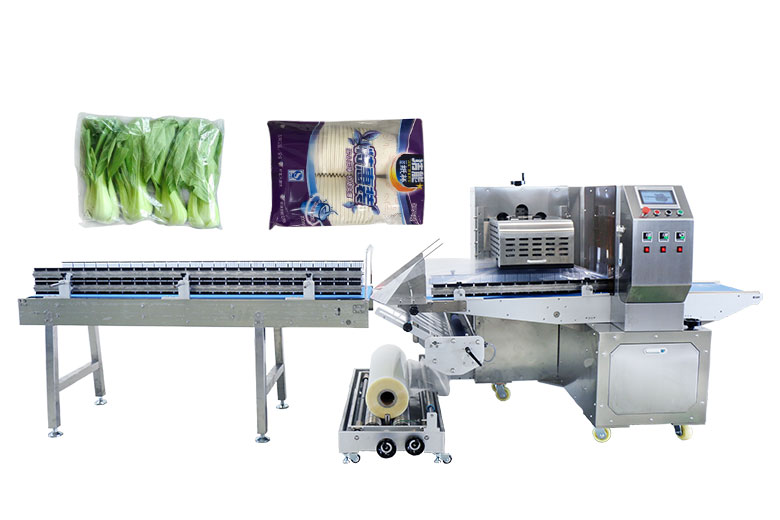

CB-800XS Multi-functional large packaging secondary packaging machine
半岛bd体育手机客户端 介绍
Product name: horizontal packing machine model: CB-800XS
Automatic packing machine
Using smart servo technology Standard features:
independent motors (Conveyor, center sealing), easy for maintenance
Motion controller for quick response to various commands
Accurate positioning
Independent temperature control for center sealing and end sealing
Food grade contact parts
Touch screen 7” Special features:
All control in one control panel, user-friendly and easy operation
Up and down cutter for high products packing and ensure the compact package
Empty bag prevention, no product no bag
No limit for product length
Independent control for movement of center sealing part, to meet different product height Outstanding Features
Output |
Up to 15-20 products per minute
Product and film characteristic may affect machine output |
Size Range |
Package cut-off length |
60-6000mm |
Product width |
Max.390mm |
Product height |
Max.200mm |
Packaging Material Reel |
Reel diameter |
≤300mm |
Core diameter |
≤75mm |
Packaging material width |
Max.800mm |
Connections |
Voltage |
220V,50HZ |
Power usage |
5.2KW |
Machine weight |
900kg |
Machine dimensions |
L4200mm*W1400mm*H1450mm |
Blade cut type |
Intermittent(Up and down) |
Motor configuration |
Double servos |
Optional Device |
date printer, etc. |
|
|
